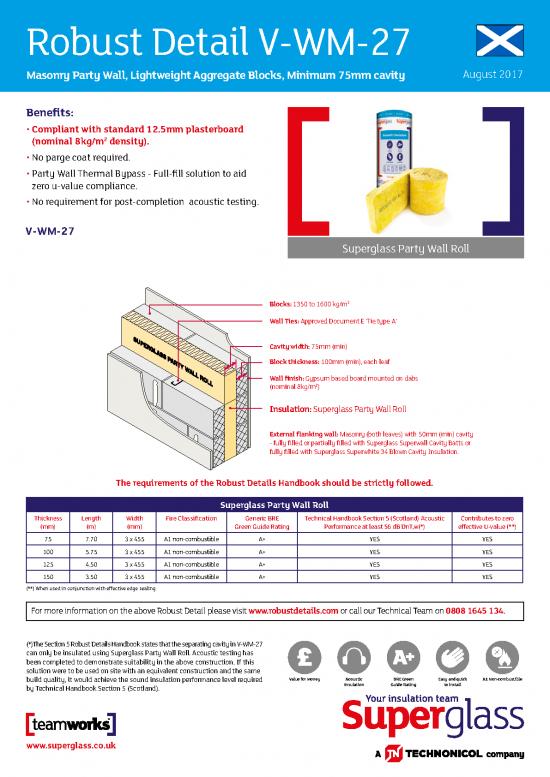

Robust Detail V-WM-27 Masonry Party Wall, Lightweight Aggregate Blocks, Minimum 75mm cavity August 2017 Benefits: Compliant with standard 12.5mm plasterboard 2 (nominal 8kg/m density). No parge coat required. Party Wall Thermal Bypass - Full-fill solution to aid zero u-value compliance. No requirement for post-completion acoustic testing. V-WM-27 Superglass Party Wall Roll 3 Blocks: 1350 to 1600 kg/m Wall Ties: Approved Document E ‘Tie type A’ Cavity width: 75mm (min) Block thickness: 100mm (min), each leaf Wall finish: Gypsum based board mounted on dabs 2 (nominal 8kg/m ) Insulation: Superglass Party Wall Roll External flanking wall: Masonry (both leaves) ...

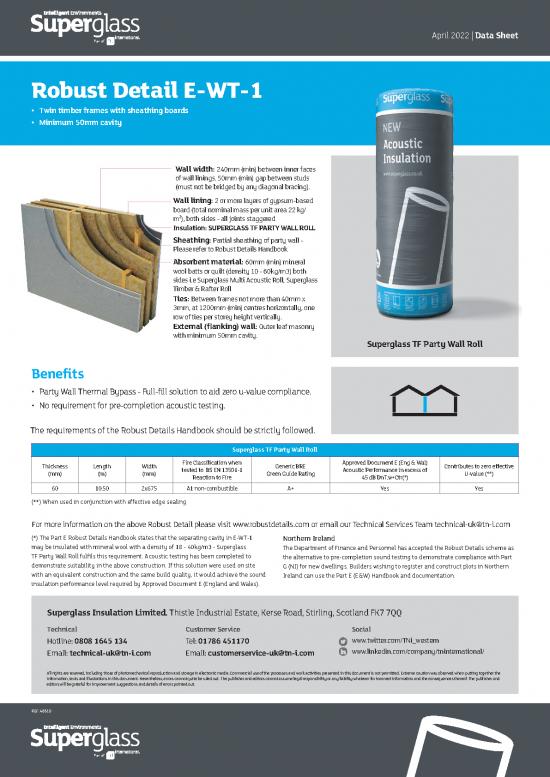

April 2022 | Data Sheet Part of Robust Detail E-WT-1 Twin timber frames with sheathing boards Minimum 50mm cavity Wall width: 240mm (min) between inner faces of wall linings. 50mm (min) gap between studs (must not be bridged by any diagonal bracing). Wall lining: 2 or more layers of gypsum-based board (total nominal mass per unit area 22 kg/ 2 m), both sides - all joints staggered Insulation: SUPERGLASS TF PARTY WALL ROLL Sheathing: Partial sheathing of party wall - Please refer to Robust Details Handbook Absorbent material: 60mm (min) mineral wool batts or quilt (density 10 - 60kg/m3) both ...
